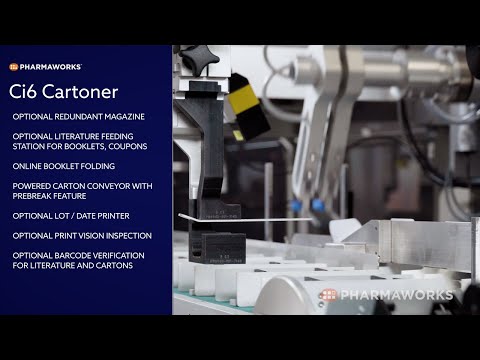

Ci6 Cartoner

The Ci6 is the perfect choice for intermittent cartoning in today’s demanding pharmaceutical environment. Engineered with cGMP and performance in mind, the Ci6 cartoner is also maintenance-friendly and easy to operate. Whether the product is a blister, bottle, or medical device the Ci6 can handle the job.

Highlights
  • Maximum Carton Size (W x H x D)120 mm x 120 mm x 180 mm
  • Minimum Carton Size (W x H x D)20 mm x 10 mm x 90 mm
  • Max Speed (Cycles Per Minute)90 CPM
  • Machine Dimensions (Length x Width x Height)4183 mm x 1317 mm x 2018 mm
  • Rapid changeover between glue and tuck closing stations
  • Open design allows easy viewing and maintenance
  • Open product infeed area accommodates different product feeding methods
  • Servo hold down and cross push into carton
  • Carton reject with positive verification

Standard Features

  • Open design allows easy viewing and maintenance
  • Independent product conveyor
  • Open product infeed area accommodates different product feeding methods
  • Independent carton conveyor
  • Servo hold down and cross push into carton
  • Independent servo tucking systems
  • Carton reject with positive verification
  • Stack height verification
  • Tuck based closing system

Optional Features

  • Literature feeding for booklets, coupons, etc
  • Online booklet folding
  • Glue based closing system

Tooling

  • Tool-less change-over
  • A setup sheet is provided with each toolset, reflecting factory-recommended parameters. This is essential for quick and efficient start-up of new tooling

Literature Feeding Equipment

  • Pharmaworks Rotary Literature Feeder

Compatible Thermoformers
